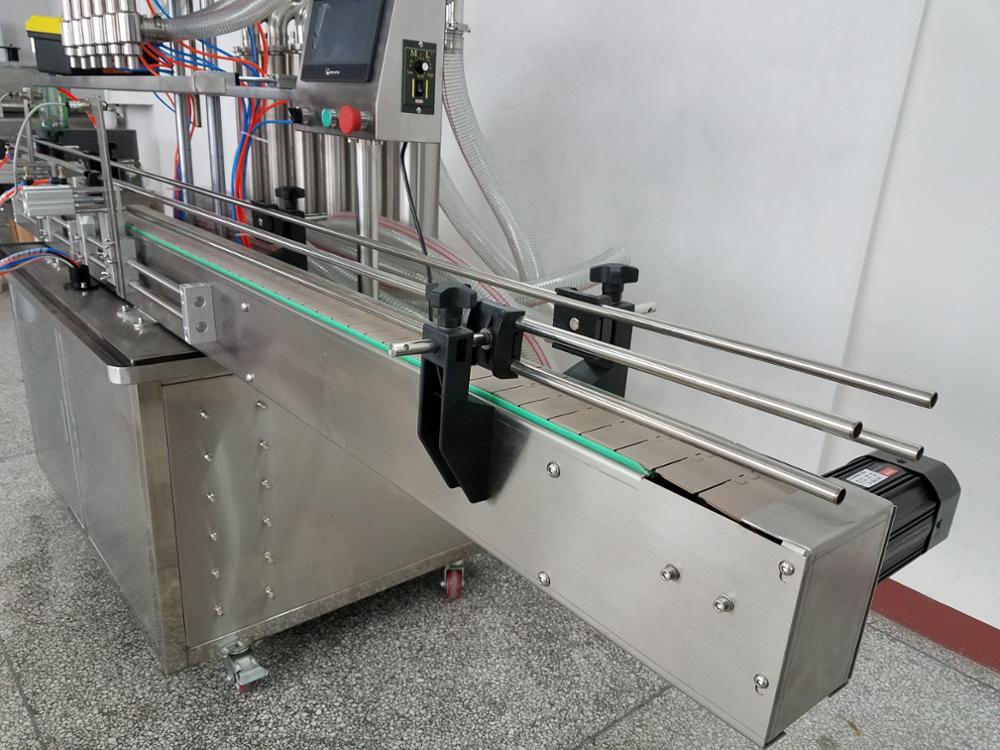

Straight line 6-head automatic liquid filling machine with conveyor PLC control

Home Products Filling Machine Liquid Filling Machine Straight line 6-head automatic liquid fi
Straight line 6-head automatic liquid filling machine with conveyor PLC controlStraight line 6-head automatic liquid filling machine with conveyor PLC controlStraight line 6-head automatic liquid filling machine with conveyor PLC controlStraight line 6-head automatic liquid filling machine with conveyor PLC control

Straight line 6-head automatic liquid filling machine with conveyor PLC control

  • Voltage:220V/110V 50/60Hz
  • Power:0.5KW
  • Dimension(L*W*H):2300(L)x1500(W)x1900(H)MM
  • Weight:600kg
  • Category:Liquid Filling Machine
  • Inquiry Send Email

    Description

    Product introduction:

    Automatic filling machine series, suitable for beverage, juice, oil, liquid condiment, cosmetic hair care products, detergent, lubricating oil, pesticide and other fluid material quantitative filling, not restricted by the bottle type.


    The automatic filling machine is a new machine designed by our company on the basis of the characteristics of several famous brand filling machines at home and abroad, combined with the experience of the company's years of production filling and the needs of the customers. The equipment can draw lessons from the good performance of high quality filling equipment at home and abroad. The filling is fast and slow, no spillover, no drip filling finished, and the device has the characteristics of compact structure, simple operation and high degree of automation. It is really easy to adjust, no bottle and no filling, and the quantity of filling is accurate.


    Full automatic quantitative filling machine, using the direct type design microcomputer control, accurate filling measurement, easy to adjust filling quantity, flexible and flexible application of 100-5000ML bottle type (including special type bottle) filling. More than 90% of the parts of the whole machine are made of 304 stainless steel, and 304, 316L for contacting material parts, which conform to international hygienic standard. It is beautiful and generous in appearance; the control system adopts imported electrical components and the working procedure is controlled by switch. The operation method is simple and convenient. Most of the transmission parts are controlled by high quality and precision pneumatic components, which have the characteristics of stable performance, safe and reliable operation, accurate measurement and so on.


    Product parameters:

    Type:Filling Machine

    Application:Beverage, Chemical, Commodity, Food, Medical

    Packaging Type:Bottles, Cans

    Packaging Material:Glass, Metal, Paper, Plastic, Wood

    Driven Type:Electric

    Voltage:220V/110V 50/60Hz

    Power:0.5KW

    Model Number:filling machine

    Dimension(L*W*H):2300(L)x1500(W)x1900(H)MM

    Weight:600kg

    Mode:Six head straight liquid filling machine

    Power supplyAC220/100V 50/60Hz

    Air pressure0.4-0.6Mpa

    Speed50-60/min

    Accuracy±1%


    HTB1eZkpXGmgSKJjSspiq6xyJFXa0.jpgHTB1dYIpXGigSKJjSsppq6ybnpXak.jpgHTB1EmMnXPihSKJjy0Flq6ydEXXa3.jpgHTB1icBBd3MPMeJjy1Xdq6ysrXXaO.jpgHTB1yzAoXGagSKJjy0Fcq6AZeVXa1.jpgHTB1.AtCXfNNTKJjSspkq6yeWFXam.jpgHTB19B3oXF9gSKJjSspbq6zeNXXaQ.jpgHTB1l.wmXPihSKJjy0Ffq6zGzFXac.jpg

    HTB1tMIVe6QnBKNjSZSgq6xHGXXa0.jpgSix-head-filling-machine-beverage-mineral-water (5).jpgHTB1uvlCqhSYBuNjSsphq6zGvVXa6.jpg
