Description
Product introduction
1. The machine is made of 304 stainless steel and aluminum alloy, which is durable
2. Imported servo control system is adopted to make the machine run stably and at high speed
3. Advanced affinity touch human-machine interface, simple operation, complete functions, with rich online help functions
4. Adopt world-renowned brand imported electrical components to ensure the stability and reliability of the machine
5. Belt conveyor, stable and reliable, to ensure the delivery of materials
6. Synchronous tracking of conveying and automatic labeling speed makes adjustment faster and easier to operate
7. Automatic sensor detection, with any label, no need for automatic shutdown and alarm automatic detection function, prevent leakage and waste
8. There is also an optional receiving platform before and after the connecting line of duan kexuan, which is conducive to the collection, sorting and packaging of finished products
9. Optional configuration (belt printer) can print the production date and batch number online to reduce the bottle packaging process and improve production efficiency
Product parameters

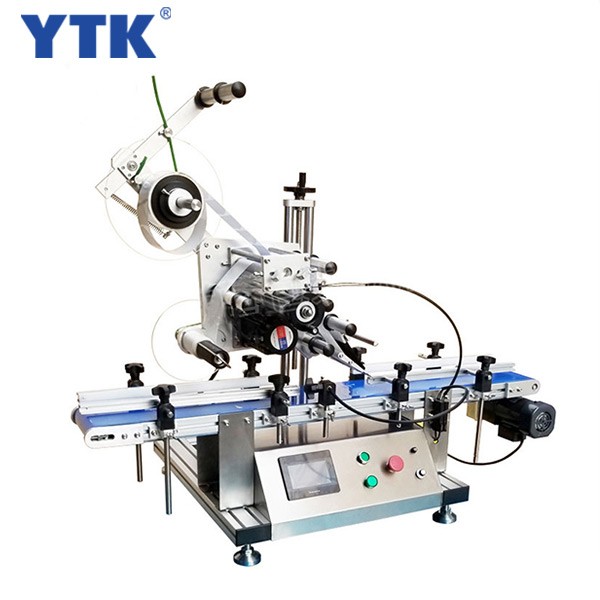

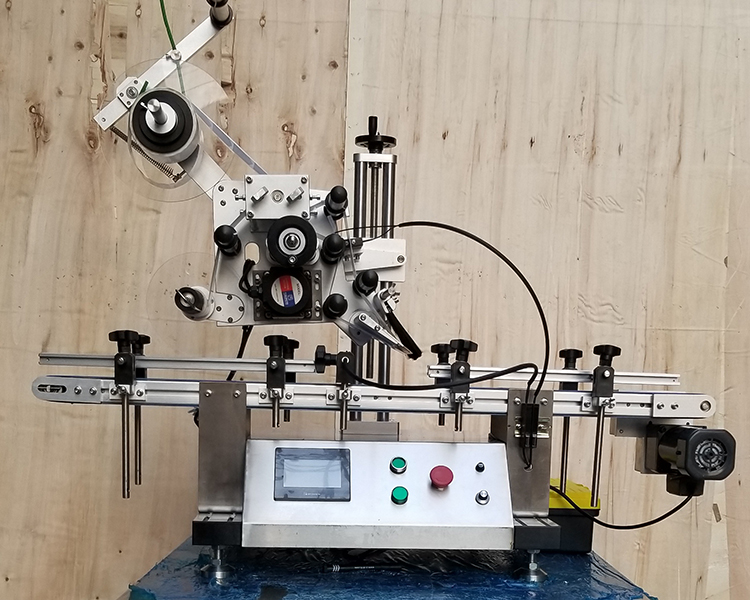

Model:YTK-160
Labeling speed:20-200pcs/min(up to label object and label length)
Label roll outer diameter:30-120mm
Label roll inner diameter:76mm
Label length:20-200mm
Label Width:20-180 mm
Bottle height:60-310 mm
Bottle Width:30-90 mm
Bottle length:25-300 mm
Labeling precision:±1mm(Excluding label object and tag discrepancy
Dimension:1200*500*650mm
Weight:200Kg
Features
1. Widely used in commodity, such as round bottles/cans/jars/tubes...
2. Adopt mature PLC control +touch screen control system technology.
3. Easy operation with reasonable price.
4. Ribbon date printer/collecting turntable is optional.
5. Best after-sale service, with the one-year warranty, life-long maintenance
The machine adopts famous brand component parts to keep the machine with high quality. but we are factory, so our price is competitive.we hope you will be our customer, and you will be satisfied with our product and service.
